WPA2 Authenticationmode downgrade in Espressif microprocessors (CVE-2020-12638)

23 July 2020

Update 26.2.21: Added Info about Arduino ESP32 patches as of 1.0.5 release

Update 26.7.20: Added note about esp8266 arduino core implementing workaround While working on my master thesis about "Security of open-source home automation software" I discovered a serious security issue in the Espressif Systems microprocessor SDKs. Espressif has been working on the patch of this vulnerability that has been deployed to several versions of their SDKs. Additionally a simple workaround can be applied in the code if upgrading to a patched version is no immediate option.

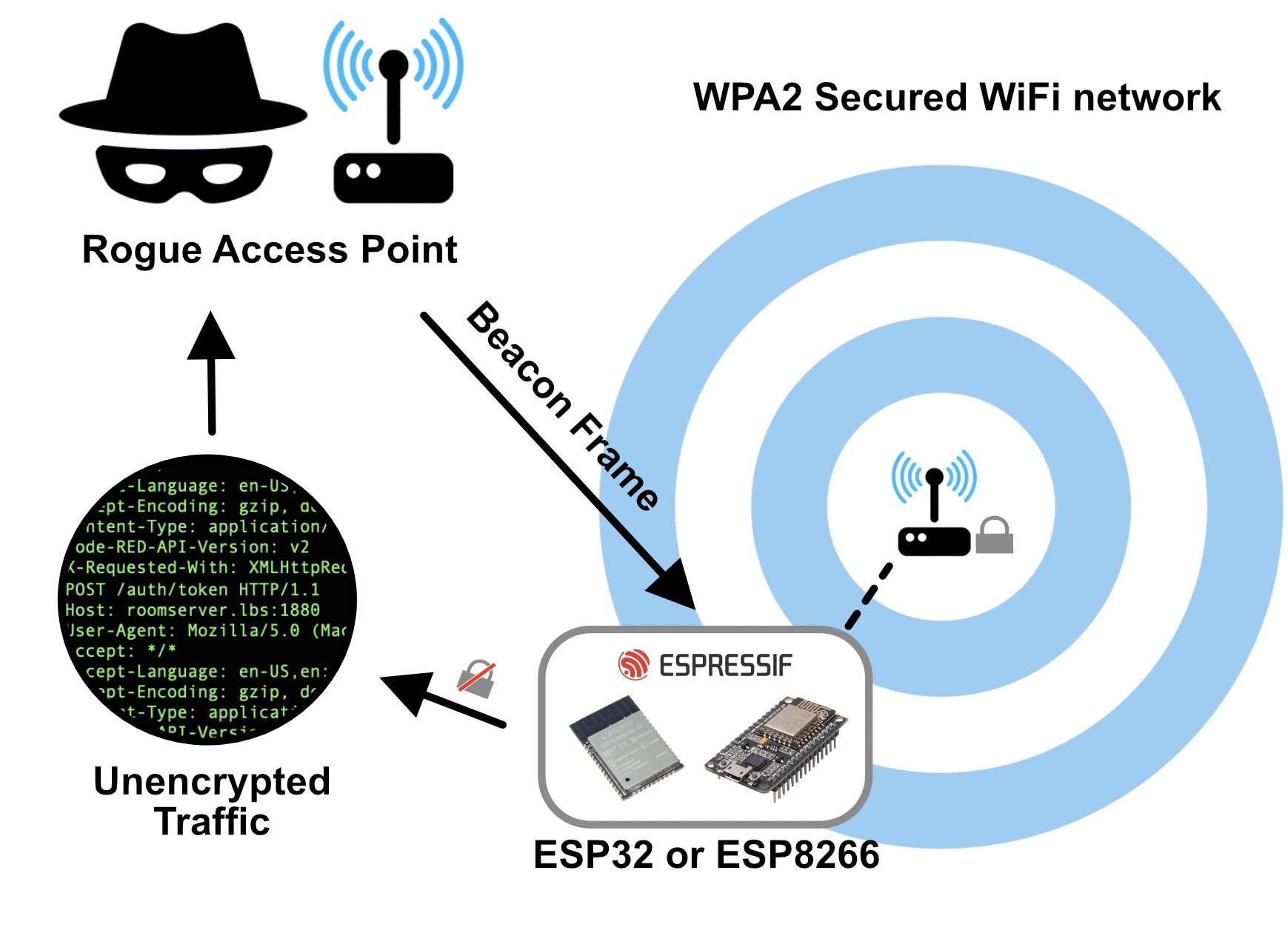

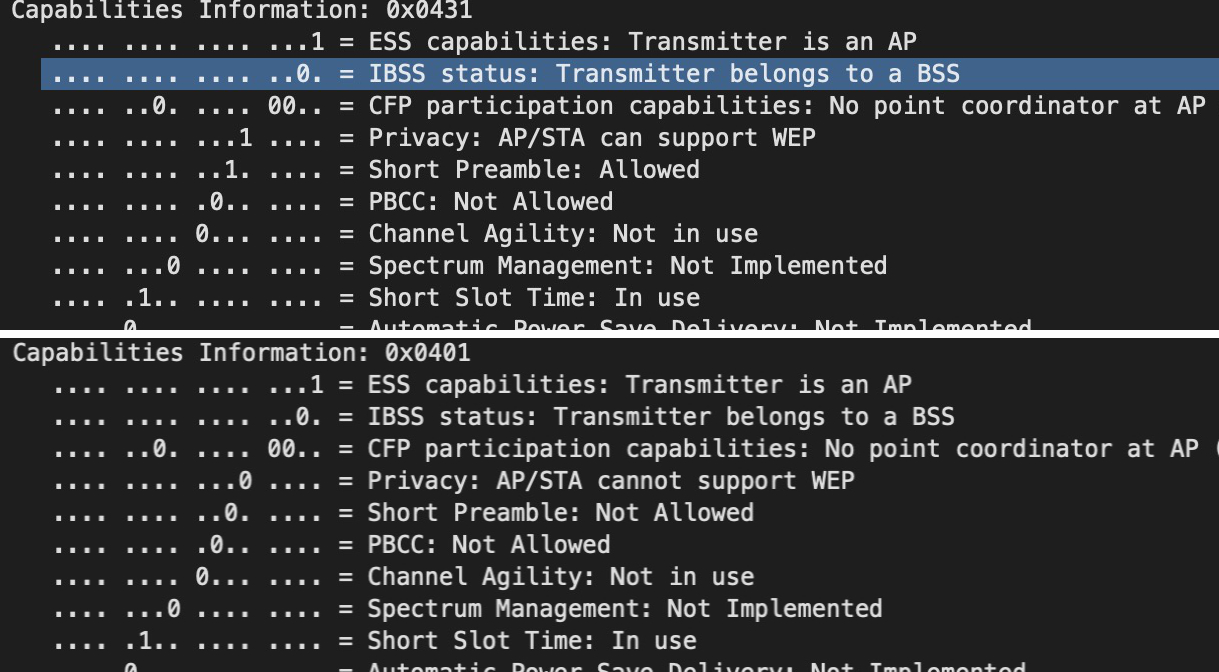

This vulnerability allows forcing the ESP8622 and ESP32 chip families into downgrade their WiFi authentication mode, effectively disabling their encryption entirely. Using a channel switch attack an adversary can easily gain a man-in-the-middle position and read, replay and manipulate any unprotected traffic of the device. It works by sending a beacon frame with the same data as the WiFi network that the ESP is currently connected to, but switching the Privacy bit in the authentication header to 0. This will cause the Espressif device to switch to the OPEN authentication mode and send out unencrypted traffic until it receives a beacon frame from the original access point again. To stabilize the attack a so called Channel Switch Announcement can be sent to force the ESP chip to switch to a different wireless channel. This way it will not receive the original access point beacons anymore and keep sending unencrypted communication to the rouge access point. Here are two Wire-shark screenshots comparing the original (upper image) and the forged (lower image) 802.11 beacon frames:

Why is this an issue?

ESP8266 and ESP32 are commonly used in many different applications from hobby to commercial applications. When the application code running on the chip does not ensure authentication, encryption and verification of it's communication as it is the case in many open-source home automation systems such as Tasmota or ESPHome1 it is possible to manipulate these devices without having the WiFi credentials in the first place.

Current state of the patch

- Espressif has patched the issue in the following SDKs: ESP-IDF 2

- ESP8266 NONOS SDK (master version) 3

- ESP8266 RTOS SDK 4

- ESP32 Arduino core since 1.0.5-rc1 or this commit 5

- ESP8266 Arduino core 6 (This one is not directly maintained by espressif, woraround is in place


By increasing the log level of the Espressif SDKs it is easy to detect the attack. The WiFi stack reports it’s WIFI_EVENT_STA_AUTHMODE_CHANGED event7 , including the information of the old and the new mode used. This makes it trivial for the application code on the chip to enforce a disconnect once a switch from a more secure to a less secure authentication mode is detected, effectively mitigating the risk of a compromise of information. A simple proof-of-concept mitigation for the ESP32 could look like this: https://github.com/s00500/esphome/commit/52f11b8a386f5ba7ed2904a4abc4ee883c5b45d3


In the patched version of the ESP-IDF the event has been removed.

Further Links

See Espressif's Security Advisory published here:


Proof of Concept implementation: Will be published later this year

CVE-2020-12638 Entry in the CVE Database: https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2020-12638

If this was helpful or you have any questions consider writing me an email or buying me a coffee ☕️
